Virtual Pivot Dual Link Systems (VPP - DW Link): explanation

Virtual Pivot, the system that is popular on Santa Cruz bikes or, thanks to the DW Link, in brands like Pivot or Ibis.

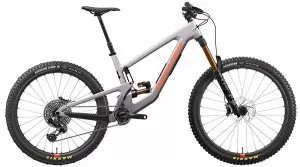

Santa Cruz VPP
Santa Cruz VPP

We are faced with a single block rear stay connected to the front triangle via two links. The shock absorber can be operated from the rear as well as from one of the two levers.

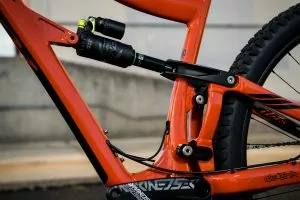

The Santa Cruz VPP scheme employs links that rotate in opposite directions (one counterclockwise and the other clockwise), while for others, such as DW-Link employed by Ibis and Pivot, they rotate in the same direction (clockwise).

Basically it is always a quadrilateral pattern but with the pivot on the chainstays. Also in this case the direction of the wheel axis is dictated by the movement of the instantaneous center. These systems allow you to vary the soul of the bike, such as the value of the Anti Squat, as the excursion varies and therefore have fewer constraints than systems single pivot.



Written by

famac@famac.ind.br I am passionate about everything that has 2 wheels: in my youth I practiced competitive cycling on the road and on the track with good results. At the age of 18 I moved to cross country competing at national/international level as U23. Once I passed Elite, I made the choice to take things easier from the training point of view, and that's how my love for gravity disciplines was born, training as an FCI MTB instructor and guide. Now I have made my passion my profession by managing 3 MTB centers on the island of Elba (Elba MTB), creating the FANTAmtb and telling in an ironic but professional way, everything that revolves around MTB thanks to 365mountainbike and 365TV (YouTube 'PULITI dentro BIKER fuori').

CORRELATED ARTICLES

VIDEO – How to set the shock absorbers of our MTB / e-bike

Insights

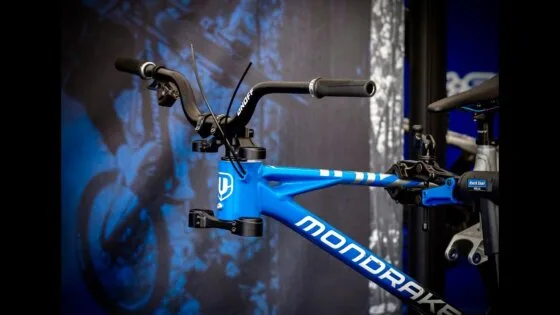

Dakotah Norton: Watch the huge 75mm RISE in the World Cup
